Specification:
Order code: DIL-22C

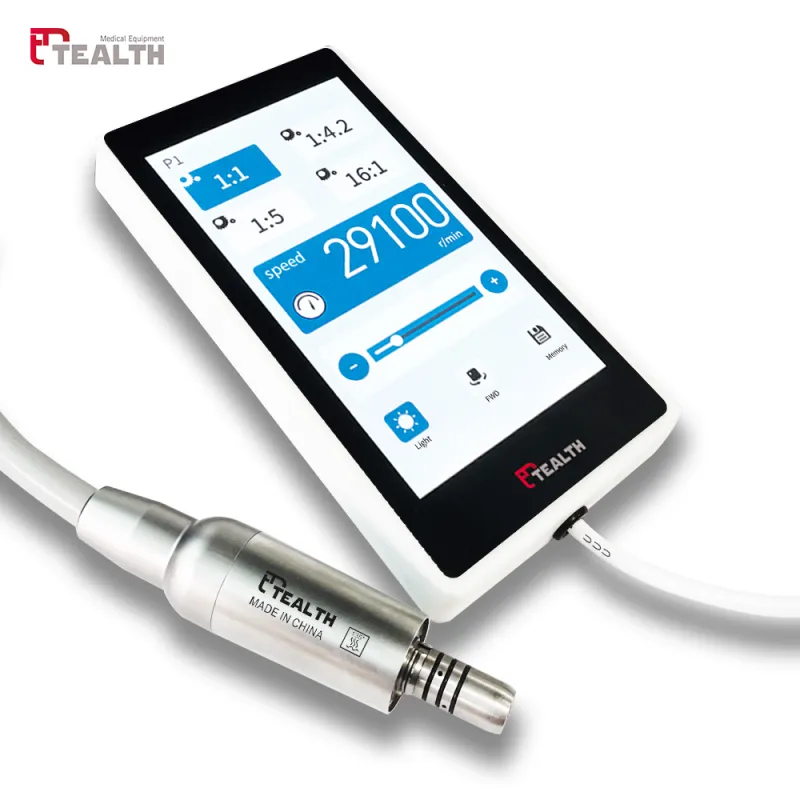

Commodity：Built in brushless electric motor
Rotation speed: 2000~40000r/min
Torque: 3 N.cm
Voltage: DC24V-36V
Motor size: Φ22*L74mm
Weight:77g
Noise: <60dB
Light: LED (white)
Control system Size: 148*80*17mm
Feature:
* Micromotor is brushless, permanent magnet electrical micromotor, use for artificel lab and dentistry clinic
* Built in type, for dental chair.
* Handpiece with LED Light
* With air motor
* With control panel
* This Micromotor has 4 speed rates: 1:1 1:5 16:1 1:4.2
* ISO E type motor handpiece

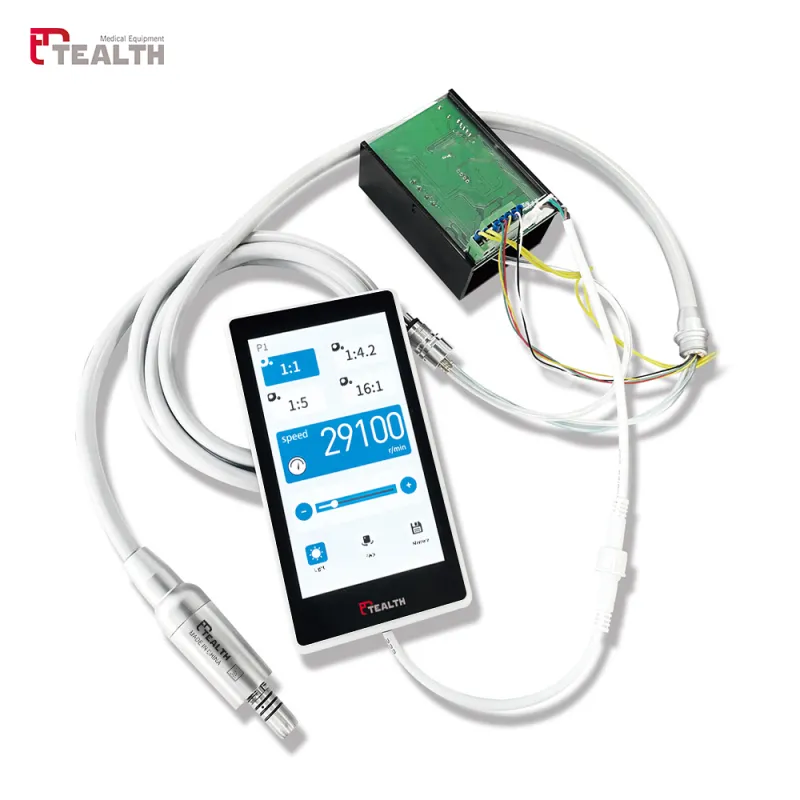

Packing List:
* Motor：------1pcs
* Motor tubing: -----1pcs
* Control panel: -----1pcs
* Instruction manual: -----1pcs
Application:
This product have 4 speed rate 1:5 , 1:4.2, 1:1 & 16:1. when use different contra angle with this motor, the speed display is the contra angle’s rotation speed. Press speed rate button to choose correct rate for the contra angle you are using, and the base color of the button will be blue.
Only to be used by dentists, treating for shape modification of dental caries and dental crown,filling and polishing.
Application: providing driving forces to dental surgery by using the handpiece.
Specification:
| Motor type | Direct current brushless motor |
| Voltage | DC36V |
| Rated Power | 72W |
| Operation mode | FWD/REV |
| Speed | 2,000-40,000 rpm |
| Torque | 3.0N·cm |
| Coolant gas | 6-8 NL/min(0.2MPa) |
| Sterilization | 121℃20 minutes,or 135℃12minutes |
| Motor size | Ф22×L71mm |
| Touch Screen Controller size | 148×80×20mm |
| Driving system size | 90×65×40mm |
| Noise | ≤60dB |
Water/Air supply:
| Water supply | Above 65 ml/min(0.2MPa) |
| Air supply | Above 1.5 L/min(0.2MPa) |
| Cool hydraulic pressure | 0.2MPa |
| Brand | Tealth Medical Equipment |
|---|---|
| Category | Small Equipments & Instruments |
| Subcategory | Implant & Electrical Motors |
| SKU | N/A |
| Stock Status | In Stock (10 available) |
